High Power RF Circulator SMA KCCR0801

Model No. : KCCR0801

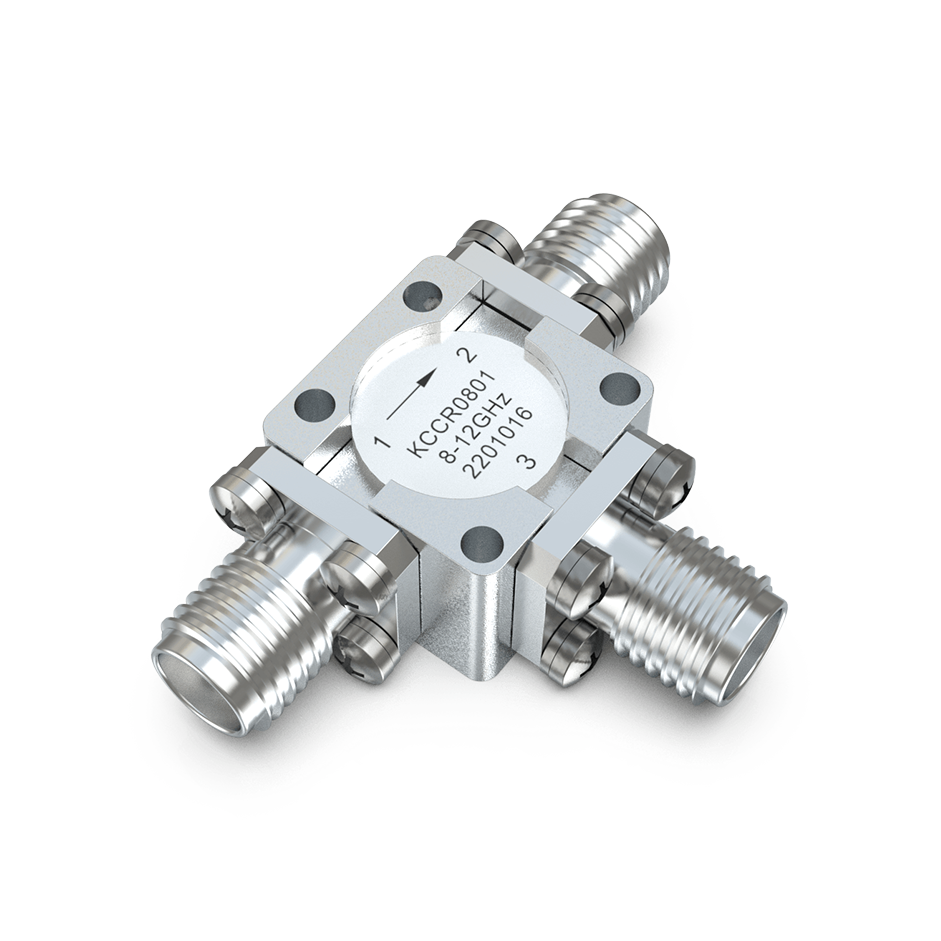

KeyLink's rf circulator KCCR0801 is a single-junction, SMA circulator with a minimum 17 dB isolation between 8-12 GHz and rated to 50 watts of peak forward power. This microwave circulator is designed for wireless infrastructure and radar applications with an operating temperature range of -20℃ to +70℃.

Start : 8000 MHz Stop : 12000 MHz Ins. : 0.5 dB Iso : 17 dB Return Loss : 17 dB Forward Power CW : 50 Watts Rev Power CW : 30 Watts Temp. : -20 ~ +70 ℃ Size : 12.7X12.7X9.5 mm

Get Quote Data Sheet

RF circulators are 3-port devices that utilize the steering characteristics of statically biased ferrites, directing energy from one port to the clockwise adjacent port. RF Circulators are used as duplexers in transceiver systems with shared antennas. They isolate the transmitter and receiver – reducing the transmitter’s output signal power level presented to the receiver. Microwave Circulators are also part of a microwave Gunn diode reflection amplifier. They are used to turn a one port diode into a two port device, enabling the negative resistance characteristics of the Gunn diode to be utilized as an amplifier. We are ready to develop Circulators to your specifications and we will happily consult on your requirements, develop and manufacture for your cost-effective products that are delivered right and on time.
